Extruder Tools & Upgrades

Home MachinerySteele Upgrades & ToolsExtruder Tools & Upgrades
Upgrades & Tools:
  • Extruder Tools & Upgrades
  • Pug Sealer Tools & Upgrades
  • High-wear Coatings for Bridges
  • Model B Waste Chopper Blade Retrofit
  • Hammermill Upgrades
  • Mixer Upgrades
  • Vacuum System Upgrades

Steele Extruder Tools & Upgrades — Improve the quality of your extruded product and make extruder maintenance easier

Steele engineers continue to refine our extrusion machinery, working in consultation with the machine operators and maintenance specialists in our global customer base.

Extended Wear Auger

A redesigned lip profile extends wear life and ensures better pre-slicking for shorter break-in. Available in all 90 Series augers.

Extended Wear Auger Brochure
Extended Wear Auger

Auger Installation Tools

75AD Extruder Instructions
90AD Extruder Instructions
Steele Auger installation tools

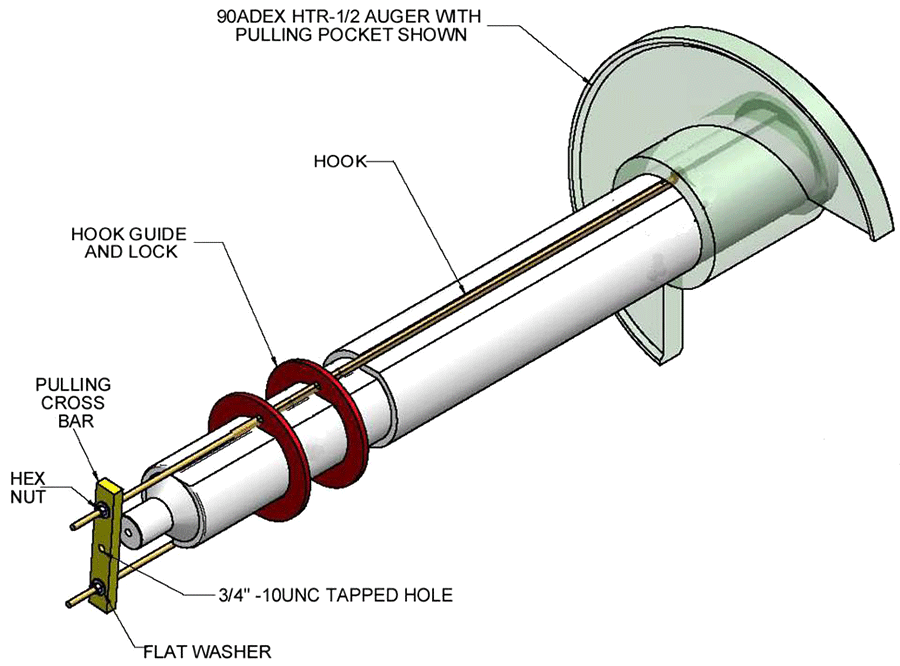

Auger Puller

Use for safer and easier removal of 90 Series augers

90 Extruder Auger Removal Procedure
Steele 90 auger puller - removaltool

Feed Roller Swipes

  • Easy to replace as feed roller shoes, reducing maintenance and downtime
  • Two mating halves bolt around the shaft — no need to remove the feed roller shaft, bearing cartridges or grease seals
  • Plow bolts lock into place and won’t rotate during assembly or disassembly
75AD Feed Roller Swipes
90AD Feed Roller Swipes
Steele Feed Roller Swipes

Oil Filter Assembly

  • Upgrade for 75 and 90 Series Extruders and Pug Sealers improves filtration
  • Easier replacement than previous designs
  • Improved filtration
    — Cleaner recirculating oil
    — Longer service life for gearbox components.

The filter assembly retrofits, mounting on the same bracket and using the same plumbing (kit contains all hardware and detailed replacement instructions). A differential pressure indicator informs operator when to replace the filter element.

Oil Filter Assembly Brochure
Steele Oil Filer Assembly

Vacuum Chamber Level Sensor

  • Integrates with existing control circuitry to prevent vacuum chambers overfilling
  • Material enters the extruder from the pug sealer and reaches the desired level, with the sensor disengaging pug sealer clutch to stop material flow
  • Optional on new Steele pug sealers
  • Retrofits to existing machinery

The sensor ships with complete installation guide and wiring diagram.

Vacuum Chamber Level Sensor
Steele vacuum-chamber-level-sensor

Liner Adapter Installation Tool

  • Makes liner installation on our 90AD Extruder faster and easier.
  • Bolts to front flange of hydraulic die changer mainframe.
  • Easier to center and align liner adapters or adapter/circular liner assemblies.

Upon removal, pull the assemblies past the machine front for optimum safety and convenience.

Liner Adapter Installation Tool
Steele Liner Adapter Installation Tool

Machinery, engineering and service

We work with our global customer base to drive process improvements in material preparation and shaping. To discuss improvements for your production, talk to your regional Steele sales or service representative, or contact us.
Ready to learn how 135 years of experience with tough raw materials can help you? Contact Us
